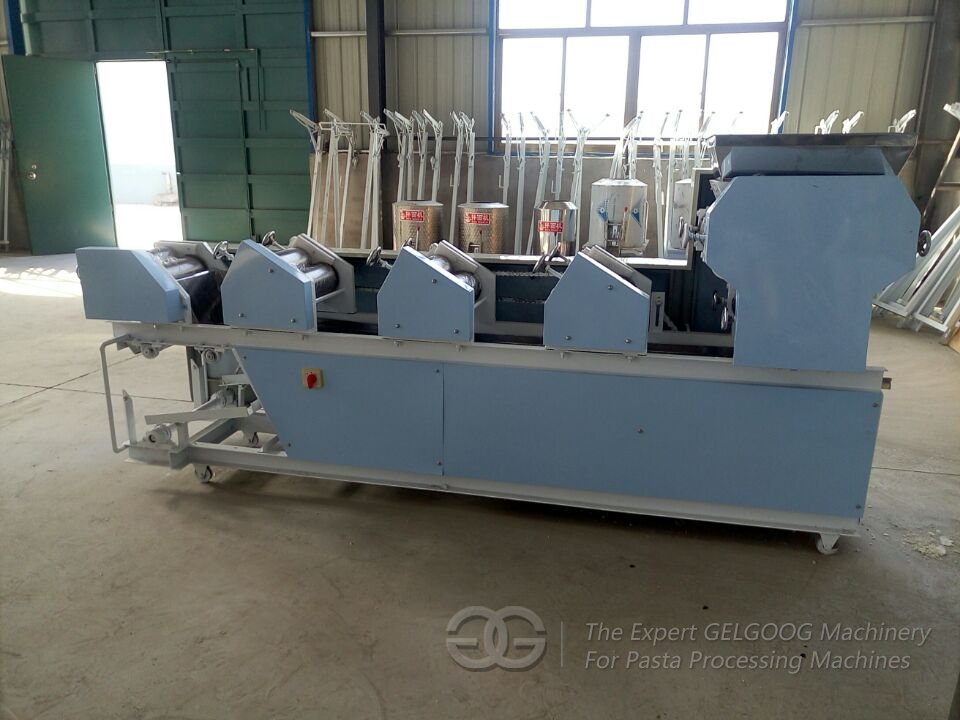

Installation Guide For Automatic Noodle Maker Machine

The Installation Guide

1, The mechanical installation of this automatic noodle maker machine must be fixed flat. Open the side cover, 30 # engine oil filling in the reducer. According to the ground symbol grounding line.

2, Check each part fastener whether there is loose phenomenon during the transit.

3, Connect power supply, try positive & negative, under normal circumstances, install the triangle, then the motor cover.

4, Check whether the oil hole service part unobstructed, and all oil and then can start

Operational guidelines

1, Dough mixng: If=t is the first working procedure in noodles production, began to mix in the flour into the dough mixer machine, in accordance with the provisions, add the proportion of 25% water, start the power, to mix the flour and water evenly to granule (to use the best in about 10 minutes), can be used.

2, Adjust: Use the handwheel to adjust the roll gap, each roll gap reference data are as follows: (more than 330 units) in the process of adjustment, tighten or loosen the handwheel, sometimes not easy alignment, the key is to find out reason, be patient, can be adjusted down when not skilled, normal after locking the handwheel.

3, Operation: The mixed flour inside the bucket, press knife and fixed blade, can boot operation, the third group down to the panel by hand to the next set of (multi set etc) after operation.
